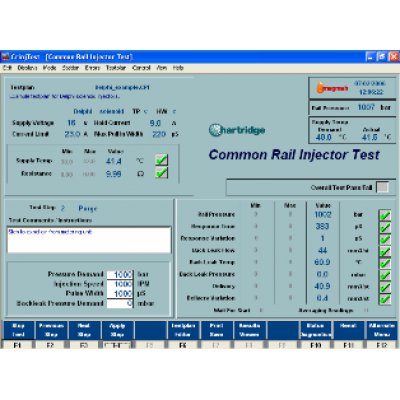

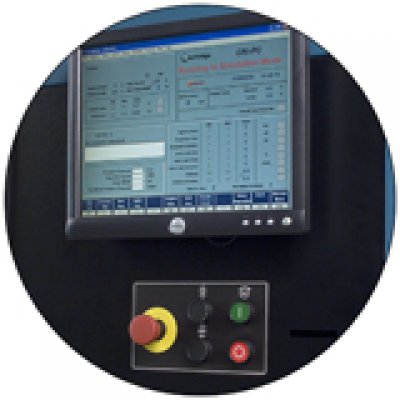

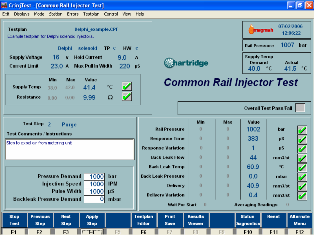

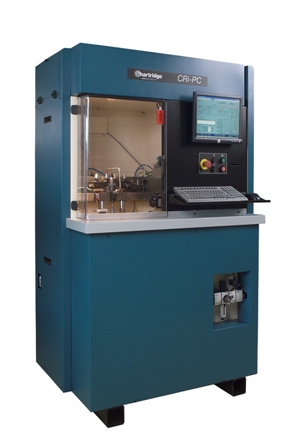

Popis

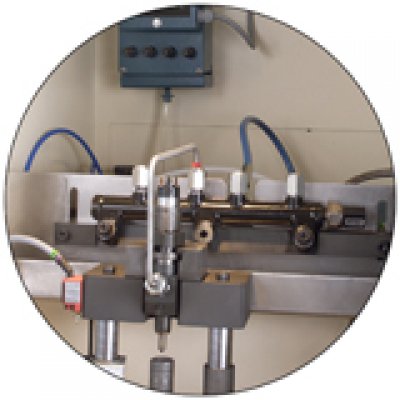

Filters Reference Part Number Description Qty Main filter 8850082 Fuel filter 1 Metering unit filter 8850073 Nupro filter SS-8F-K4-60 1 Pump suction filter A129C011 CRi suction filter 1 Bulbs Reference Part Number Description Qty H1 internal lamp 507-4095 Lamp 35W 12V ac 1 Test fluid system Reference Part Number Description Qty M1 motor / CR pump 8910232 Motor 4kW (Mod Std E+) 1 HS359 Motor 4kW (Mod Std A-D) 1 M1 motor / CR pump A115B102 Coupling tapered 1 M1 motor / CR pump U2-295 402 Coupling sleeve 1 M1 motor / CR pump U2-478 692 Coupling hub 1 M1 motor / CR pump 5WS40018 High pressure pump 1 S10 / S12 fluid level HS333 Vertical float switch 1 S8 tank thermostat 229-5884 Thermostat 70°C 1 Displayed tank temp 174-02-42 Thermistor 1 HTR1 heater (LV) A115E116 Heater element 220V 1 HTR1 heater (HV) A115E115 Heater element 440V 1 Rail R9144A060A High Pressure rail 1 Fluid circulation pump (Mod std. H+) A129C010 Pump assembly 1 Clamping system Reference Part Number Description Qty Clamp cylinder A129K116 Piston actuator 1 S13 clamped switch 320-4741 Limit switch 1 Delay timing sensor A129P180 Piezo transducer 1 Metering system Reference Part Number Description Qty A3 metering unit A129E000 Metering unit 1 A3 metering unit 174-02-42 Thermistor 1 A3 metering unit 201Y Solenoid coil 24VAC 1 A089A-E923 Delay timing unit 1 A089E002 Backleak measurement unit 1 Pneumatics Reference Part Number Description Qty Fluid circulation pump (Mod std. A-G) A129C007 Pump assembly 1 Air pressure switch 0821100023 Pressure switch 1 Air system dump valve R412006260 Air dump valve 1 Fluid dump valve A129D001 Pressure dump valve assembly 1 Water system Reference Part Number Description Qty Tank cooler 10-17 Heat exchanger 1 Tank cooler HS321 Tank cooler solenoid replacement kit 1 Metering unit cooler HS322 Metering unit cooler solenoid replacement kit Fuses Reference Part Number Description Qty F1-F3 Three phase supply (LV) 968-596 Fuse 32A size A1 NITD 3 F1-F3 Three phase supply (HV) 551-879 Fuse 20A size A1 NITD 3 F4/F5 Heater supply (LV) 551-855 Fuse 10A Size A1 NITD 2 F4/F5 Heater supply (HV) 551-843 Fuse 6A Size A1 NITD 2 F6 24V control 798-990 Fuse 3A A/S 1.25” x 0.25” 1 F7 29V control 798-976 Fuse 2A A/S 1.25” x 0.25” 1 F8 14.5V metering supply 799-014 Fuse 5A A/S 1.25” x 0.25” 1 F9 Internal lamp 799-014 Fuse 5A A/S 1.25” x 0.25” 1 F10 Dump solenoid supply 798-952 Fuse 1A A/S 1.25” x 0.25” 1 F11 DC power supply 798-952 Fuse 1A A/S 1.25” x 0.25” 1 F24/F25 DC power supply 117-5140 Fuse 1A A/S 1.25” x 0.25” HRC 2 Injector controller FS1 444-8133 3.15A A/S 20 x 5 1 FS2 350-8109 6.3A A/S 20 x 5 1 Pump controller FS1 350-8109 6.3A A/S 20 x 5 1
